Fraud Proof System

[ Frawd pro-of ]

Fraud proof is amathematical proof providing evidence that a transaction on a Layer 2 blockchain is invalid.

Michael Healy
Written by
Michael Healy
Michael Healy Michael Healy Expert Author
Michael, an entrepreneur, and co-founder of Unit, is a full-stack, mobile, and blockchain developer with extensive experience in the crypto and blockchain industry since 2010. A leading token builder, Unit powers the token economy using the Polkadot-powered Unit Network blockchain. Michael has built a diverse portfolio with multiple successful exits, including encrypted P2P video conferencing,...
pawel Laskarzewski
Fact checked by
Paweł Łaskarzewski
pawel Laskarzewski Paweł Łaskarzewski Expert
Paweł Łaskarzewski is an accomplished engineering professional turned serial entrepreneur with an extensive two-decade career traversing sectors like aerospace, fintech, AI, and biotech. Beginning his career in engineering, Paweł developed key problem-solving and technical skills that laid the groundwork for his later entrepreneurial achievements. He has notably contributed to the banking sector by co-founding two...

Blockchains such as Ethereum are incredibly secure but require a lot of processing power to handle transactions, leading to scalability issues.

For this reason, Layer 2 scaling solutions (e.g., Arbitrum, Optimism, zkSynk) have been created.

Validating transactions on Layer 2s based on optimistic rollups is done using something called a fraud proof to challenge assertions (i.e., L2 blocks).

What Is a Fraud Proof?

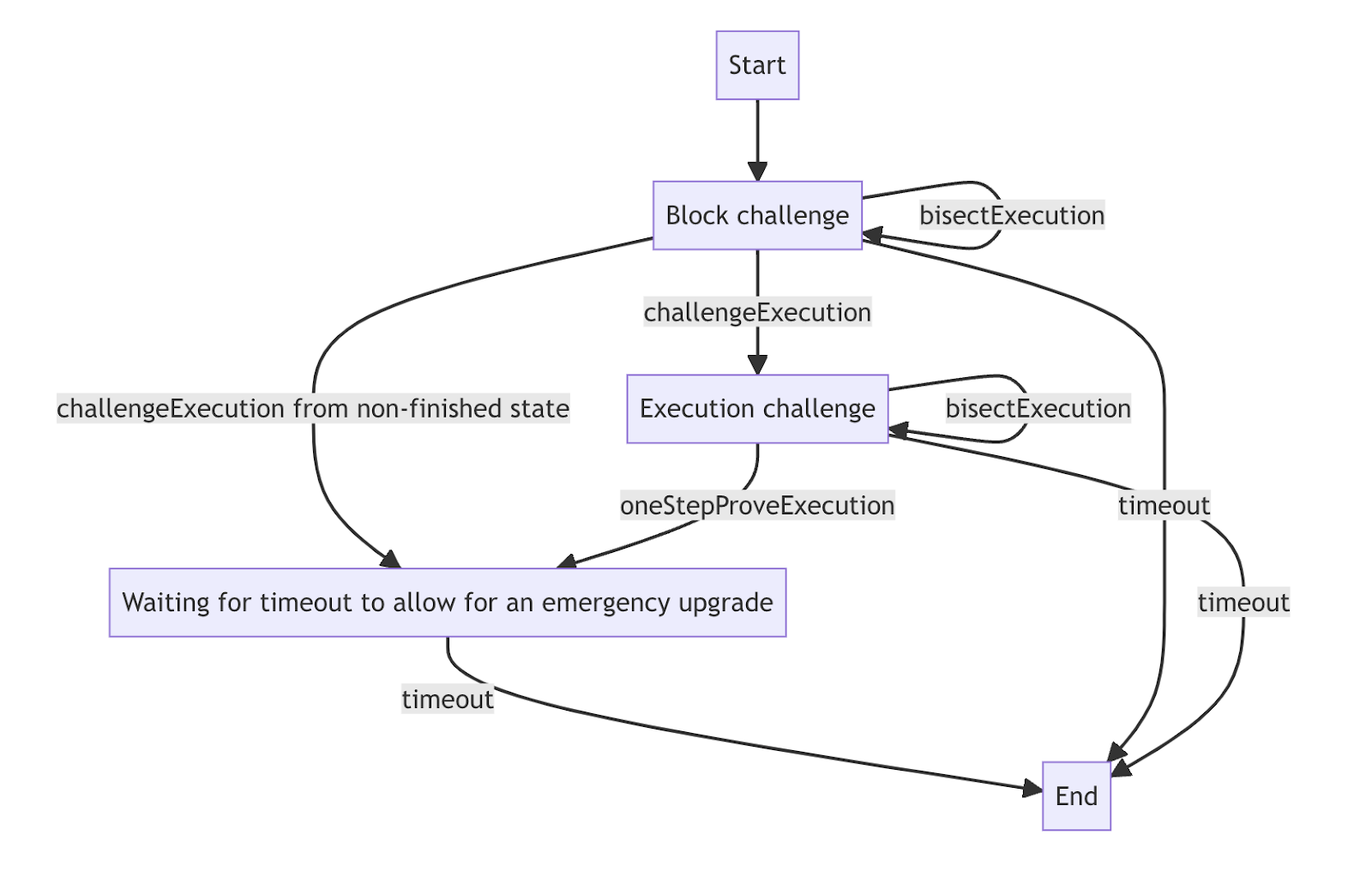

A flowchart showing Arbitrum's Challenge manager, the system that handles how state disputes are handled
Arbitrum’s Challenge Manager (Bisection Algorithm) | Source Arbitrum.io

A fraud proof, sometimes called a fault proof, is essentially evidence of invalidity provided by validators on the L1 chain about a transaction processed on an L2 chain.

blockquote icon

Fraud proofs are bundles of transaction in L2 blockchains that “point” to and prove an inconsistency in the transaction data.

They hold the necessary data required to re-run an L2 transaction on L1.

“Fraud and data availability proofs are key to enabling on-chain scaling of blockchains (e.g., via sharding or bigger blocks) while maintaining a strong assurance that on-chain data is available and valid”

(Al-Bassam, M., Sonnino, A., & Buterin, V. , n.d.)

How does the Proof System work?

After being rolled up, transaction data is sent from the L2 to the L1, where it is handled “optimistically” (i.e., it is assumed to be correct).

There is a period during which the new state of the L2 can be challenged, and that is when fraud proofs are issued by validators. The invalid L2 transactions are re-executed on the L1 chain, benefiting from its superior security.

If the L2 chain’s state is found to be invalid it is rolled back and the invalid transactions are purged. The validator who pushed the invalid transactions into the L2 can also be fined for their dishonesty.

The Purpose Behind Fraud Proofs

Fraud proofs are an essential component in validating the state of L2 blockchains. They hold all the necessary data to prove the validity of L2’s transaction data without a doubt. This is done as long as there is at least one honest validator on the network.

They are central to the mechanism that keeps optimistic rollups safe and secure from manipulation.

Conclusion

While Layer 2 blockchains may sometimes seem like an unnecessary abstraction over an already complicated system, they provide an elegant solution to a major problem in the blockchain space — scalability.

Even if you’re just a user and don’t participate in supporting the systems that make it up, you can always benefit from knowing how your data and finances are handled.

doc ico
Article Sources
arrow ico
  • Al-Bassam, M., Sonnino, A., & Buterin, V. (n.d.). Fraud proofs: Maximising light client security and scaling blockchains with dishonest majorities. University College London & Ethereum Research.
    Retrieved from https://sonnino.com/papers/fraudproofs.pdf
